KV-XM Tray and Pot Filler

Automation

KV-XM Tray and Pot Filler

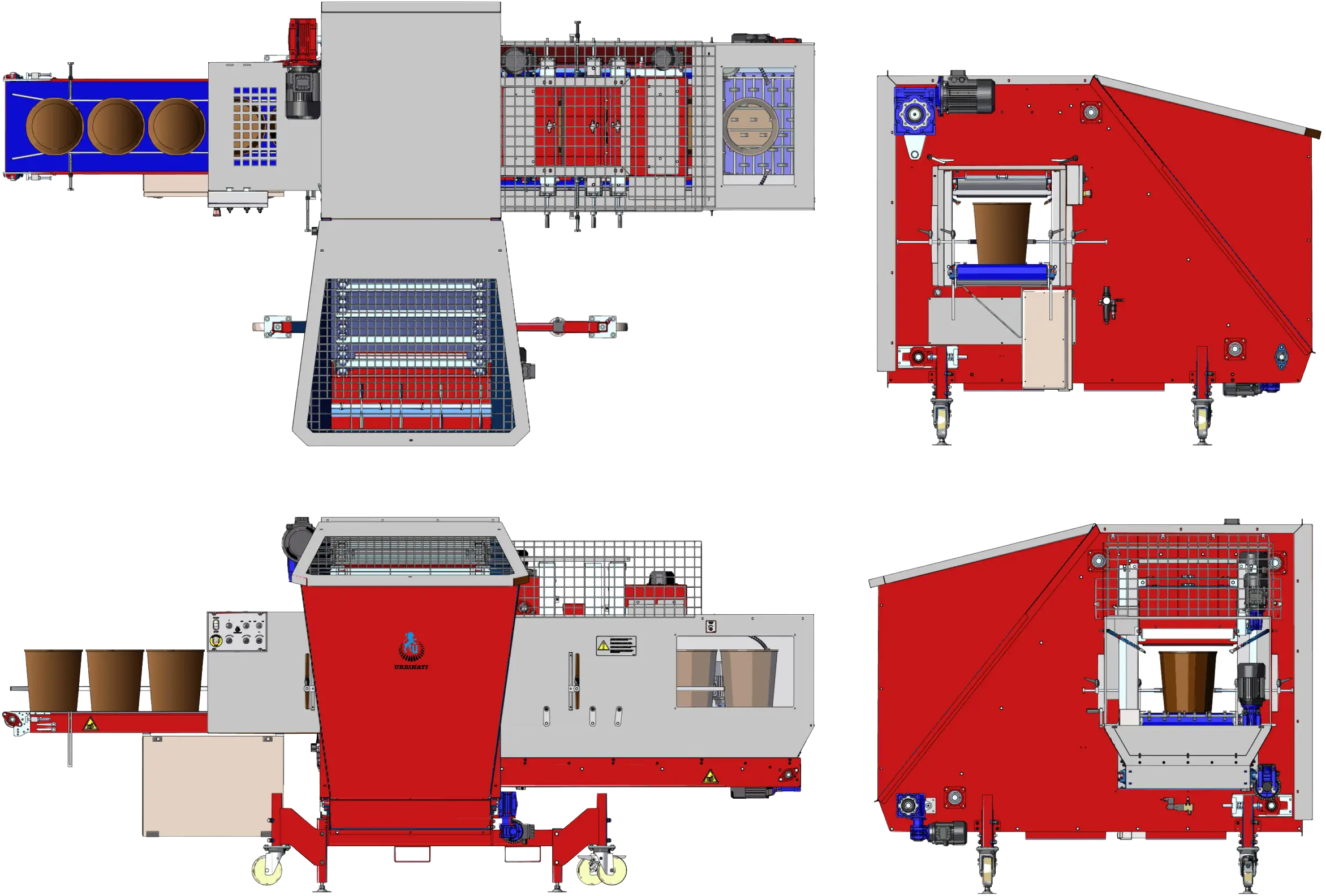

The KV-XM features a 31.5″-wide heavy-duty double galvanized elevator chain delivering up to .5 yards of soil per minute. Fill trays and pots up to 17.75″ tall quickly and uniformly. Soil density and compaction are precisely controlled by a 4-blade longitudinal rotor, powered roller, leveling auger, and finishing brush—all quickly adjusted with crank handles for fast changeovers. Powered outfeed rollers and conveyor belt efficiently return excess soil to circulation, reducing waste.

For pricing and additional information, contact the AdeptAg Sales team.

Contact For Quote

PDF Brochure

Details

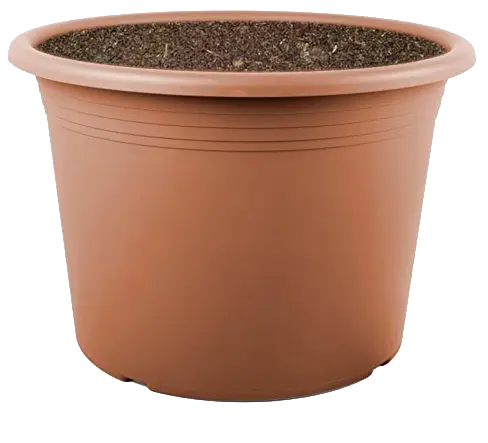

High-Speed Filling – Delivers up to 0.5 cubic yards of soil per minute, filling up to 1,200 twelve-inch pots per hour.

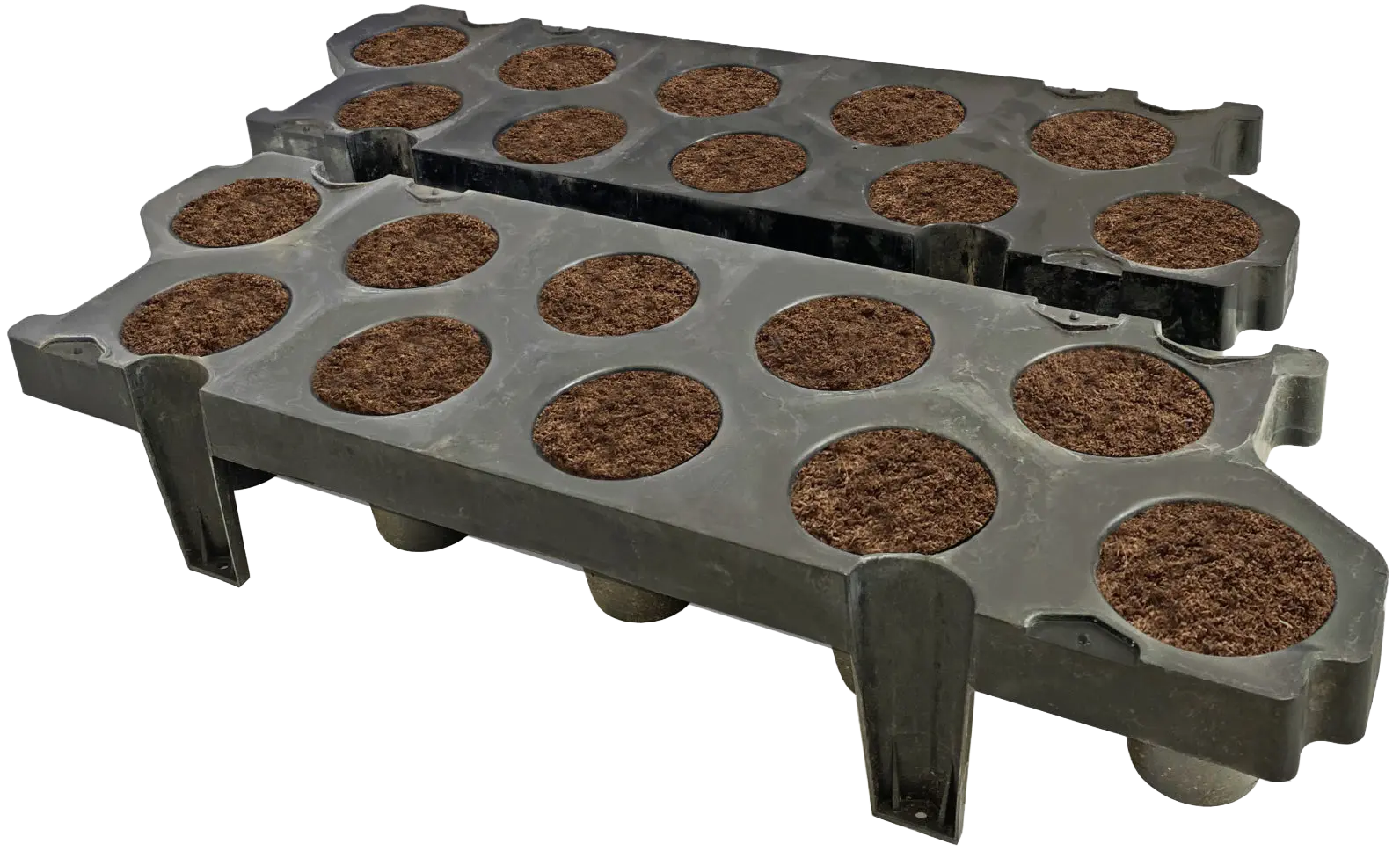

Tray and Pot Flexibility – Handles containers from 1.25″ to 17.75″ tall and up to 17.75″ wide—run trays and pots on the same machine.
Precision Compaction System – Longitudinal 4-blade rotor, powered compaction roller, leveling auger, and spiral finishing brush work together for consistent soil density. All adjust quickly with crank handles.
Efficient Soil Recirculation – Powered outfeed rollers and a lower conveyor belt return excess soil to the hopper automatically, reducing waste and manual handling.
Heavy-Duty Construction – 31.5″-wide double galvanized elevator chain, heavy-duty wheel kit, and 2,865 lb frame built for continuous production.
Moveable Control Panel – Position the controls where your operator needs them for easier line management.
- Dimensions: 160″ L × 87.25″ W × 73.5″ H
- Weight: 2,865 lbs
- Hopper capacity: 1 cubic yard
- Soil elevator capacity: 0.5 cubic yard/min
- Filling rate: up to 1,200 twelve-inch pots/hour
- Container height range: 1.25″ to 17.75″
- Max container width: 17.75″
- Power: 220 VAC, 3-phase, 20 amps (single-phase optional)
