KV-XL Filler

Automation

KV-XL Filler

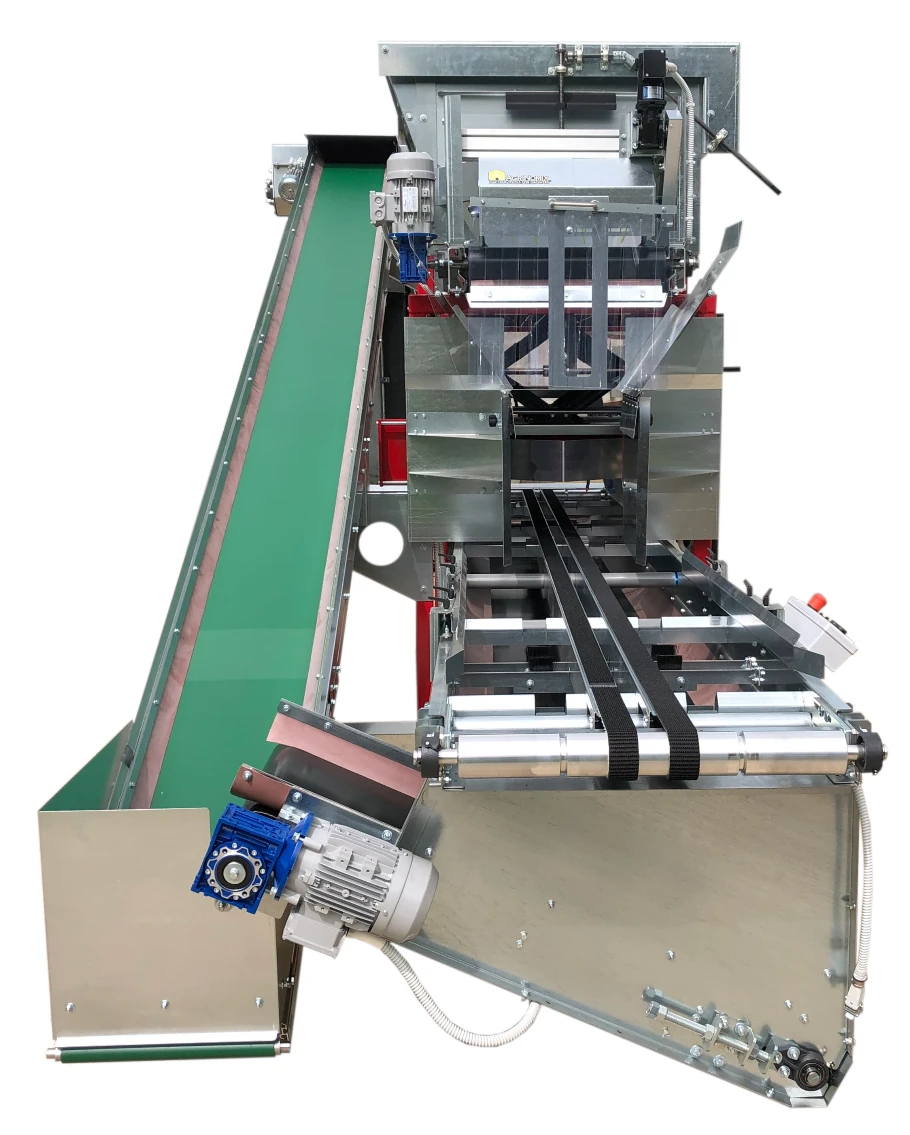

The KV-XL sets the standard for versatility and reliability. The soil hopper sits directly over the filling belt for even side-to-side filling while minimizing floor space.

Direct drive gearboxes, inverter duty motors, sealed bearings, and heavy-duty galvanized and powder-coated steel construction provide years of low-maintenance operation. Superior soil return uses powered rollers, three belt conveyors, and a short auger. Fills containers up to 22″ wide and 17.5″ high.

For pricing and additional information, contact the AdeptAg Sales team.

Contact For Quote

PDF Brochure

Details

- Space-Saving Design – Hopper positioned directly over the filling belt for even side-to-side filling while minimizing floor space.
- Wide Container Range – Fills any container from 4″ to 22″ wide and up to 17.5″ tall.

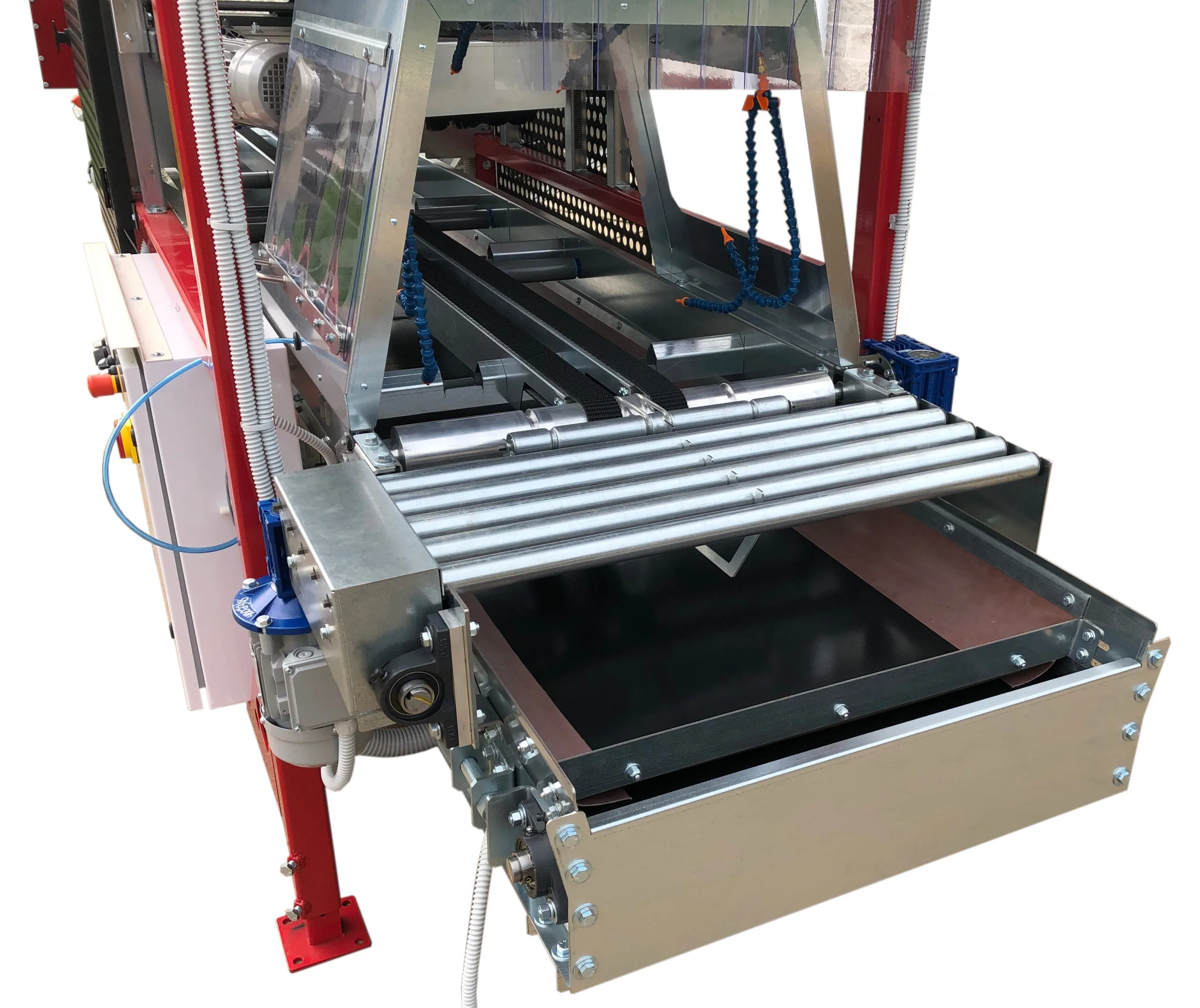

- Superior Soil Return – Large powered roller outfeed, three belt conveyors, and a short level auger move excess soil back into the supply hopper automatically.
- Quick Changeovers – Easy-to-use crank adjustments for compactor, roller, and rotary brush enable fast transitions between container sizes.
- Heavy-Duty Construction – Direct drive gearboxes, inverter duty motors, sealed bearings, and galvanized powder-coated steel for years of low-maintenance operation.
- Peat and Bark Compatible – Designed to handle both peat and bark soil mixes.
- Line Integration Ready – Controls designed for integration into larger production lines.
- Soil capacity: 2 cubic yards (expandable to 4 cubic yards)
- Container width: 4″ to 22″
- Max container height: 17.5″
- Overall dimensions: 203″ L × 70″ W × 106″ H
- Belt length: 160.5″
- Power: 220 VAC, 3-phase, 30A
- Drill max clearance: 10″ (optional dibbler)
- Drill bits: Up to 7″ (optional dibbler)
