Cloth Filters

Keep irrigation water clean and free of impurities with high-quality Cloth Filters. Efficiently remove dirt and media from irrigation systems, promoting healthier plant growth and system longevity. Automatic cloth advance via float switch maintains continuous operation as debris accumulates. Seven cloth weights from 0.5 – 4.0 oz allow customizable filtration levels. Flow capacities from 200–750 GPM. Designed and manufactured in North America for the highest standards of quality and durability.

For pricing and additional information, contact the AdeptAg Sales team.

Contact For Quote

Details

  • Fine Filtration for Recirculation

    Removes debris from return water to prevent clogs and protect irrigation system components.

    Automatic Cloth Advance

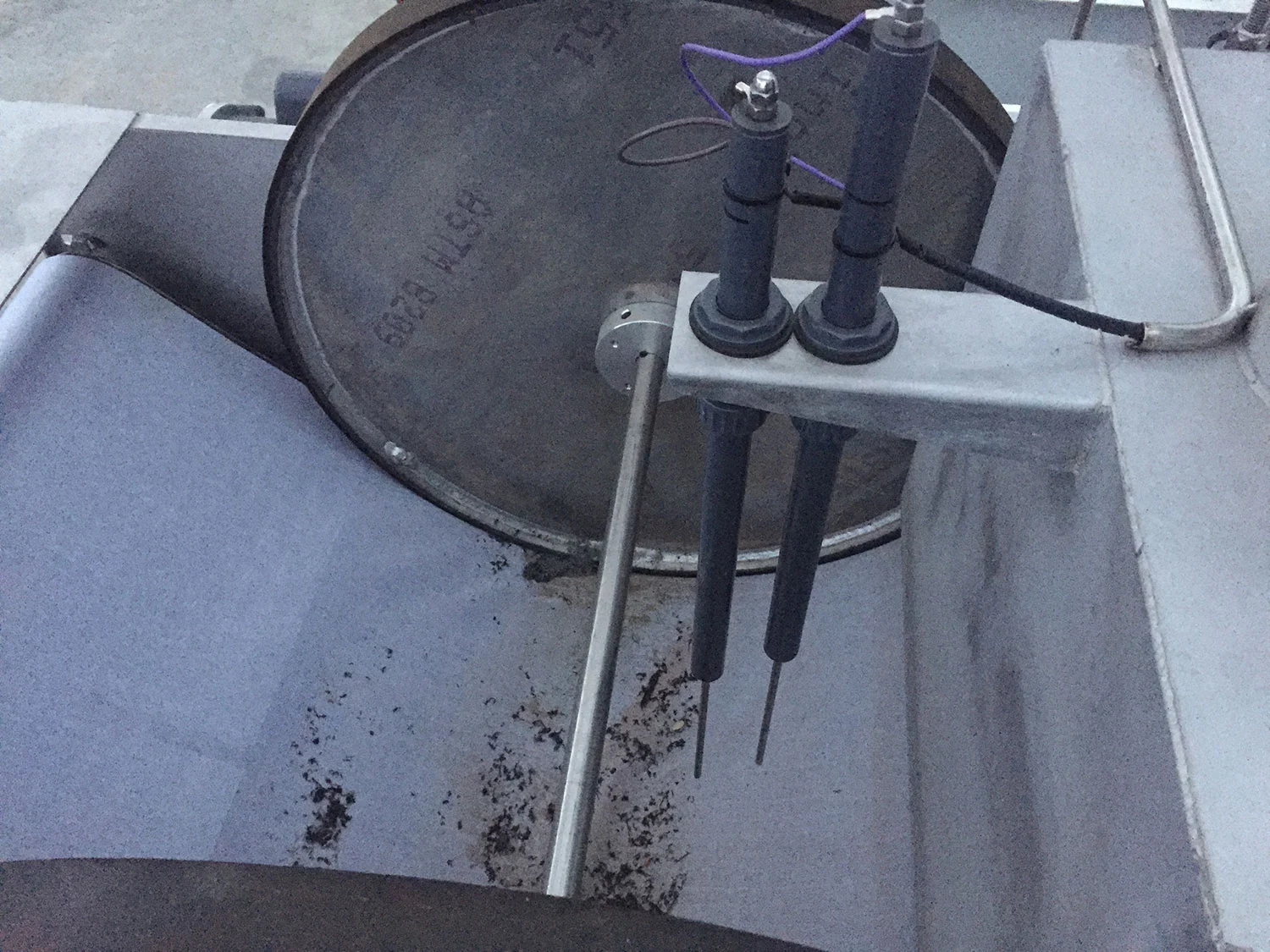

    Float switch triggers motor to advance filter cloth when debris accumulates; maintains continuous operation.

    Customizable Filtration Level

    Seven cloth weights available (0.5oz–4.0oz) for different debris levels and filtration needs.

    High Flow Capacity

    Models handle 200–750 GPM (46–172 m³/hour).

    Durable Construction

    304 stainless steel with CSA/UL certified electrical components.

    • Max pressure: 5 PSI (all models)
    • Power: 120/1/60 VAC
    • Cloth weights: 0.5, 0.8, 1.0, 1.5, 1.8, 2.3, 4.0 oz

  • Model Specifications

    Model Max GPM/hr (m³) Inlet Outlet Max PSI Cloth Width Dimensions WxLxH (mm)
    200 200 (46) 4″ FPT 6″ 5 27″ 1041x1550x991
    400 400 (92) 6″ Flange 6″ 5 51″ 1651x1550x991
    750 750 (172) 2 x 6″ Flange 8″ 5 60″ 1880x1880x1219
